High temperature resistant polyimide tape for electric, task 3D printing, soldering
Suitable for high-temperature baking paint, electronic product bonding, circuit board soldering, etc. Using dense polymer materials to prevent the penetration of acidic and alkaline solvents and protect the covered material. And this self-Adhesive Tape is environmentally friendly, non-toxic, odorless, and can be used with confidence. Has high adhesive strength, strong adhesion, and leaves no residue when peeled off. Type:
Polyimide tape
Voltage resistance(KV): 5.0
Tensile strength(N/25mm): >115
Test temperature(℃/30min): 260-300
Elongation at Break: >40
Inventory condition: 3 ℃, 65%RH
Adhesive to steel(N/25mm): >7.5
Film thickness(mm): 0.025/0.05/0.075/0.1/0.125+0.005
Total thickness(mm)0.045/0.05/0.06/0.065/0.07/0.08/0.1/0.1/

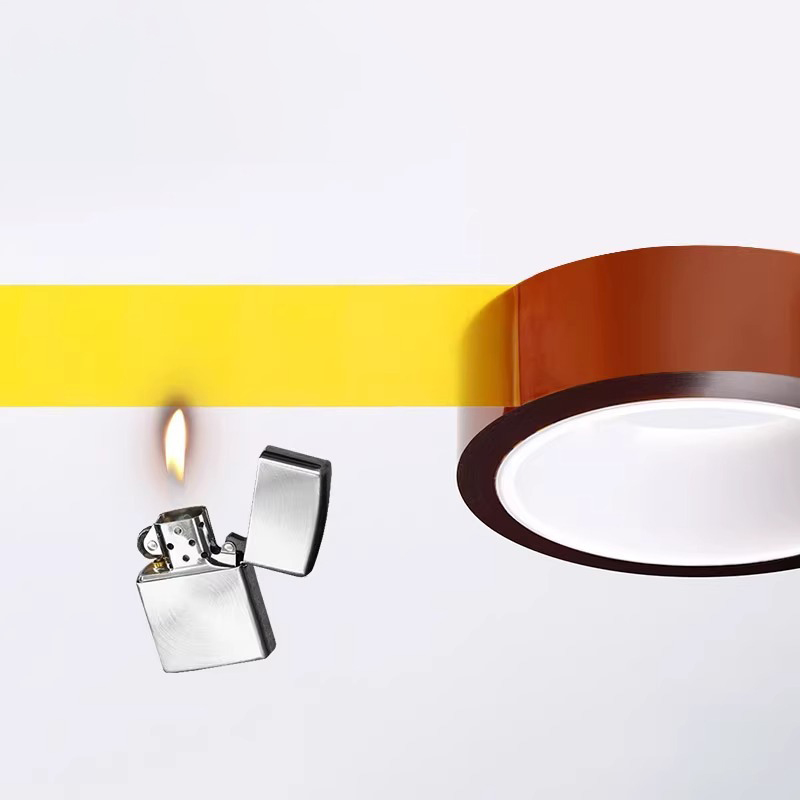

Feature: Heat resistance, High voltage insulation, acid and alkali resistance, low voltage electrolytic

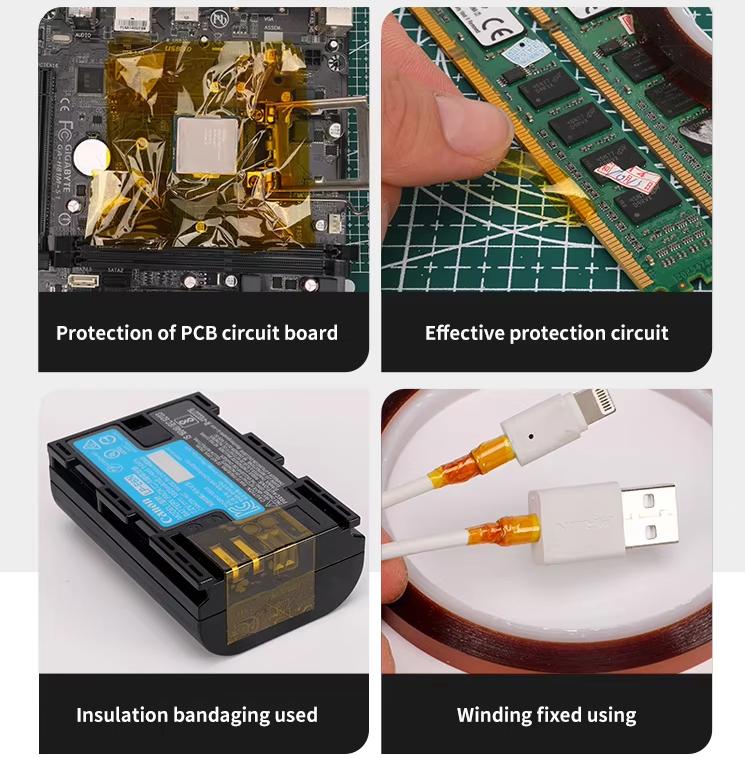

Applications: Protect golden finger when PCB board in soldering tin furnace, insulation of coil, wave-soldering protection, electricalinsulation, high temperature resistance, no residue leaving after peeling off
Production time: 5-8 working days, depends on the quantity
